Overview
The Yuill house is a system-built property developed during the early 1970s in response to housing demand across the UK. Constructed between 1970 and 1972, the design was attributed to J L Heap and manufactured by Calverley Ltd.
Yuill houses, also referred to as CM, CM Yuill, or Calverley Modular houses, were produced in limited numbers, with approximately 500 units constructed, predominantly within suburban locations.
Typical characteristics & construction
Yuill houses are typically arranged as bungalows or two-storey semi-detached and terraced dwellings. Roofs are medium-pitch gable constructions covered with tiles, reflecting architectural styles common to the period.

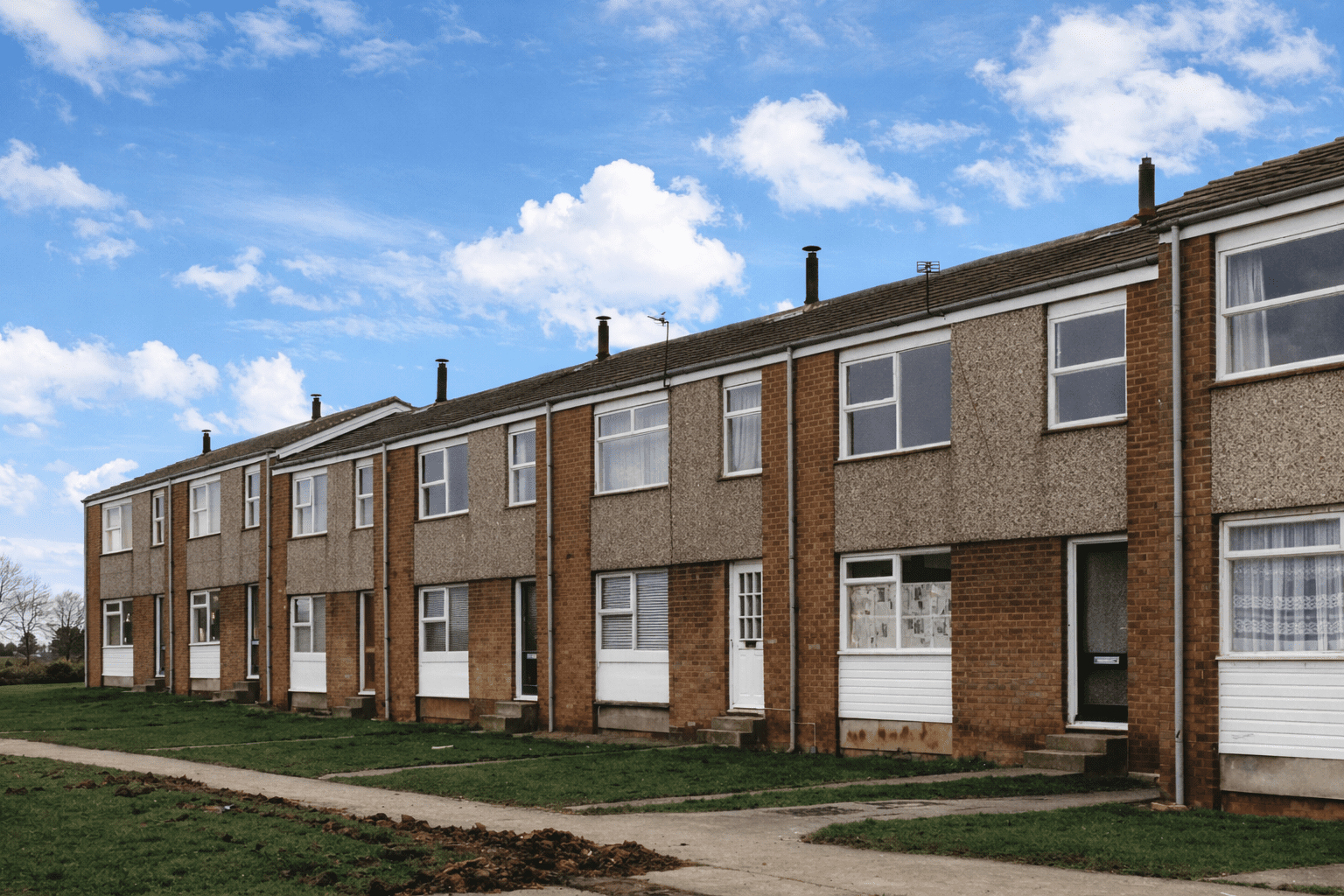

Front and rear elevations are formed with brickwork up to ground floor window head level, with horizontal timber boarded or plastic infill panels and rendered sections above. Gable walls are fully brick-built, extending around corners and along separating walls.
| Element | Typical construction | Inspection focus |
|---|---|---|
| Substructure | Concrete strip footings with brick under-building and DPC | Movement, damp protection, general stability |
| External walls | Storey-height timber frame panels with plywood sheathing and mixed cladding | Decay, moisture ingress, panel condition |
| Separating walls | Timber frame cavity wall with plywood and plasterboard linings | Fire stopping, sound insulation |
| Floors | Concrete ground floor, timber joisted first floor with plywood decking | Dampness, deflection, surface condition |
| Roof | Timber trusses with bituminous felt and tiled covering | Covering condition, insulation, ventilation |
Potential hazards & inspection priorities
Common issues associated with Yuill houses include differential movement affecting window sills, localised decay to timber window frames, and inadequate lapping of polyethylene damp-proof membranes below the ground floor.
Fire safety can be compromised where gaps exist in fire stops within the external wall cavity, particularly at separating walls. These areas require careful inspection.
Is this house right for you?
Yuill houses may suit purchasers who understand non-traditional construction and are prepared to assess condition carefully on an individual property basis.
- Inspect timber elements for decay
- Check damp protection measures
- Review evidence of alterations or variations
Mortgage & resale considerations
Mortgage acceptance and resale prospects can vary depending on condition, construction clarity, and the quality of professional reporting. Non-traditional systems may be subject to additional scrutiny.
Documented maintenance and clear survey findings are commonly influential factors.
What a survey can — and cannot — tell you
A building survey provides an informed assessment of the visible condition and construction of a Yuill house. Inspections are non-intrusive and limited to areas that are accessible at the time of inspection.
- Identify visible timber decay and movement-related cracking
- Assess signs of dampness, moisture ingress, and condensation risk
- Comment on roof coverings, drainage details, and external envelope condition
- Review the general condition of accessible floors, ceilings, and structural elements
- Highlight defects that may require repair, monitoring, or further investigation
However, there are limitations to what a survey can determine without intrusive investigation.
- Confirm the condition of concealed timber framing
- Assess hidden structural elements behind finishes or linings
- Determine the full extent of damp-proof membrane defects
- Inspect areas that are inaccessible or covered at the time of inspection
Where higher-risk indicators are identified, further specialist or intrusive investigation may be recommended.
