Overview
The Calverley Type I house, also referred to as the Calverley Modular or CM, is a non-traditional system-built property developed during the late 1960s and early 1970s. Designed by J L Heap and manufactured by Calverley Ltd, approximately 300 units were constructed between 1966 and 1972, mainly within urban and suburban settings.
Calverley Type I houses are two-storey terraced properties using modular timber frame construction with distinctive mixed cladding and flat roof design.
Typical characteristics & construction
Calverley Type I houses are two-storey terraced dwellings constructed using a platform timber frame system. Storey-height timber panels are sheathed externally with plywood and fixed to a concrete slab foundation incorporating a damp-proof course.

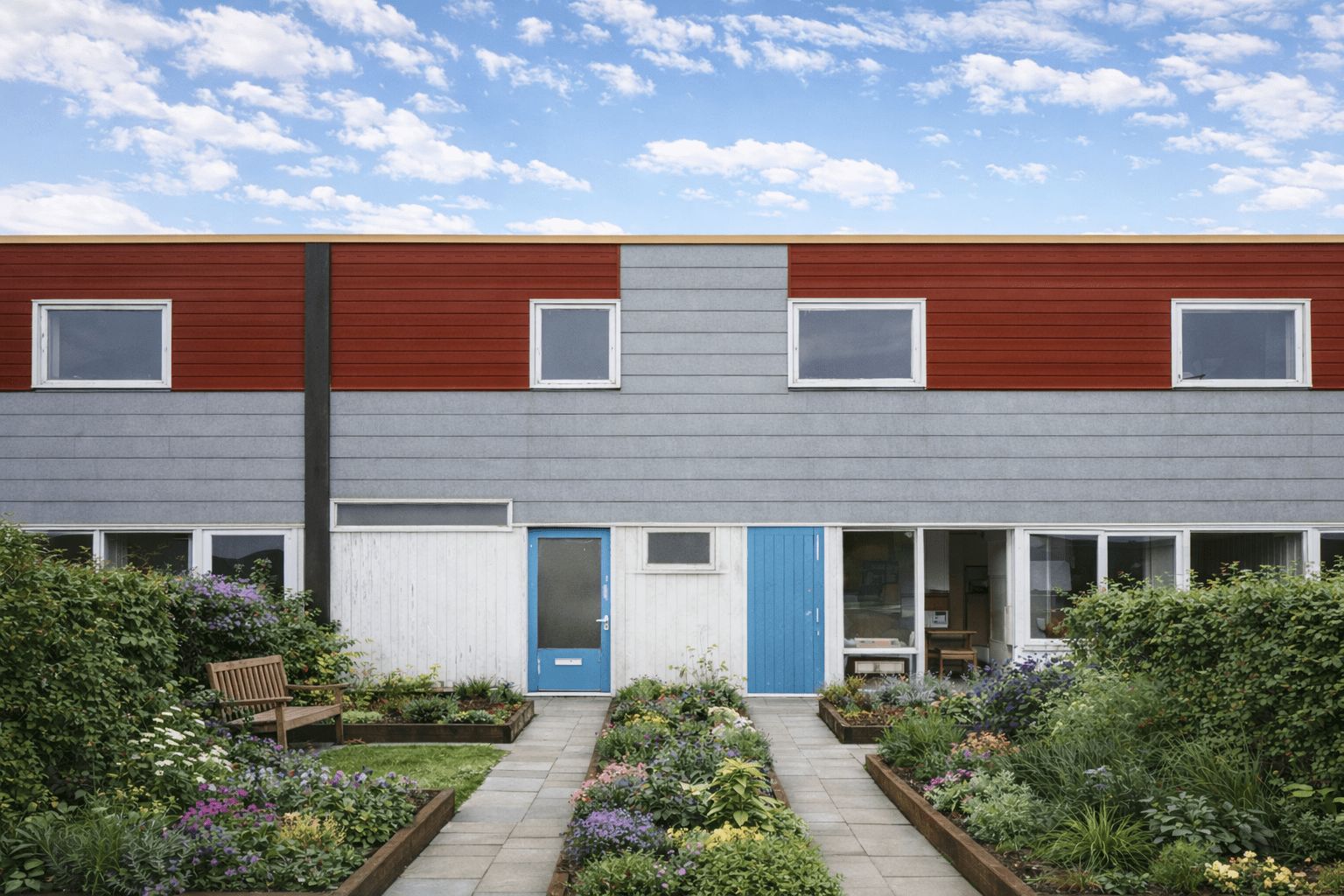

The front and rear elevations combine vertical timber boarding at ground floor level with asbestos cement tiles at first floor level. Horizontal timber boarding is present above window openings. Flank walls are formed in brickwork, providing lateral stability.
| Element | Typical construction | Inspection focus |
|---|---|---|
| Foundations | Concrete slab with DPC | Movement, overhanging brickwork, moisture control |
| External walls | Timber frame with mixed cladding | Dampness, fixings, interstitial condensation |
| Roof | Flat roof with bituminous felt | Felt condition, water ingress, drainage |
| Floors | Concrete ground floor, chipboard first floor | Movement, joist condition, fixings |
Potential hazards & inspection priorities
The most significant risks relate to moisture management within the timber frame construction. Narrow cavities, original detailing and limited ventilation can allow interstitial condensation, leading to dampness, mould growth and concealed timber decay.
Asbestos cement tiles remain a notable consideration. While generally stable if undisturbed, deterioration or damage presents a health risk and requires controlled management.
Is this house right for you?
Purchasers should be comfortable with non-traditional construction and the need for informed condition-led assessment rather than reliance on age or appearance alone.
- Understanding original materials and detailing
- Acceptance of ongoing maintenance requirements
- Commissioning a detailed building survey
Mortgage & resale considerations
Mortgage acceptance can vary for system-built properties and is often influenced by survey findings, evidence of maintenance and the management of known construction risks.
Clear professional reporting and absence of unresolved moisture-related defects are commonly critical factors.
What a survey can — and cannot — tell you
A building survey provides an informed assessment of the visible condition and construction of a Calverley Type I house. Inspections are non-intrusive and limited to areas that are accessible at the time of inspection.
- Identify visible dampness, staining, and condensation risk
- Assess condition of cladding, roof coverings, and external detailing
- Review accessible timber frame elements and floor structures
- Highlight defects requiring repair, monitoring, or further investigation
However, there are limitations to what a survey can determine without intrusive investigation.
- Confirm condition of concealed timber framing
- Assess hidden fixings or joist connections
- Inspect areas behind finishes or asbestos-containing materials
- Determine full extent of interstitial condensation
Where higher-risk indicators are identified, further specialist or intrusive investigation may be recommended.
