Understanding Bay Windows and Their Appeal

Bay windows are a quintessential feature in many British homes, adding both aesthetic charm and functional space. These windows protrude outward from the main walls, creating a bay inside the room. They not only enhance the visual appeal of a property but also allow more natural light to flood in, making rooms feel larger and more inviting. However, like any architectural feature, bay windows come with their own set of challenges, one of the most common being the appearance of cracks around them.

Identifying Cracks Around Bay Windows

Before diving into the causes and solutions, it’s crucial to understand the types of cracks that can appear around bay windows. These cracks can vary in size, direction, and severity, each indicating different underlying issues.

Types of Cracks

Hairline Cracks: These are thin, superficial cracks that often appear in the plaster or paint. They are usually less than 1mm wide and are often a result of minor settling or thermal expansion and contraction.
Vertical Cracks: These cracks run vertically and can indicate issues with the foundation or structural movement. They are often more serious than hairline cracks and require immediate attention.
Horizontal Cracks: Horizontal cracks are typically more concerning as they can indicate significant structural issues, such as foundation movement or wall bowing.

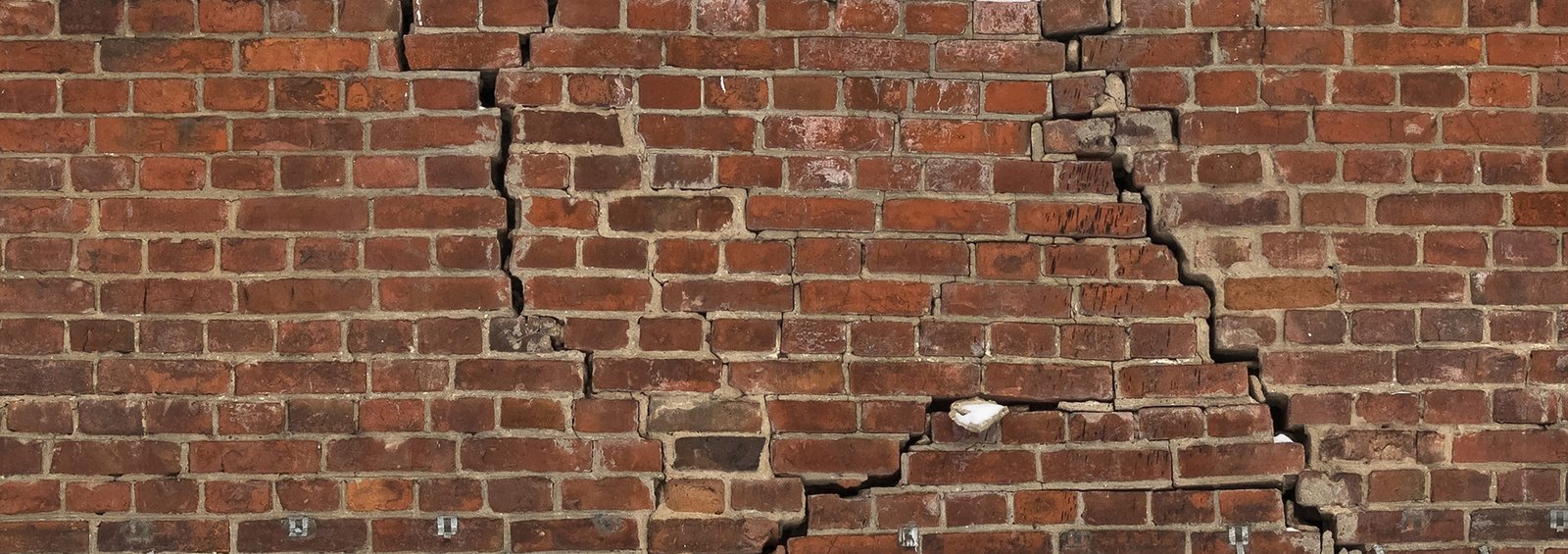

Diagonal Cracks: Diagonal cracks can be a sign of differential settlement, where one part of the foundation settles more than another, causing stress on the structure.

Common Causes of Cracks Around Bay Windows

Understanding the root causes of these cracks is essential for determining the appropriate remedial action. Here are some of the most common causes:

1. Foundation Movement

One of the primary causes of cracks around bay windows is foundation movement. This can occur due to several reasons:

Soil Settlement: Over time, the soil beneath a property can settle, causing the foundation to shift. This is particularly common in areas with clay soil, which expands and contracts with moisture changes.
Subsidence: Subsidence occurs when the ground beneath a property sinks, often due to the removal of water from the soil. This can be caused by natural factors, such as drought, or human activities, such as mining or the extraction of groundwater.
Heave: Heave is the opposite of subsidence and occurs when the ground beneath a property rises. This can be caused by the swelling of clay soil or the growth of tree roots.

2. Thermal Expansion and Contraction

Bay windows are often exposed to varying temperatures, causing the materials to expand and contract. Over time, this can lead to stress on the structure and the formation of cracks. This is particularly common in older properties where the materials may have become more brittle.

3. Poor Construction or Design

In some cases, cracks around bay windows can be attributed to poor construction or design. This can include:

Inadequate Support: Bay windows require proper support to bear the weight of the structure above. If the support is inadequate, it can lead to sagging and cracking.
Improper Installation: If the bay window was not installed correctly, it can lead to stress on the surrounding walls and the formation of cracks.

4. Moisture Ingress

Moisture ingress can weaken the materials around bay windows, leading to the formation of cracks. This can be caused by:

Leaking Gutters or Downpipes: Water from leaking gutters or downpipes can seep into the walls, causing them to weaken and crack.
Poor Sealing: If the bay window is not properly sealed, water can penetrate the structure, leading to damage and cracking.

5. Structural Movement

Structural movement can occur due to various factors, including:

Vibrations: Vibrations from nearby construction, traffic, or even household activities can cause stress on the structure and lead to cracks.
Load Changes: Changes in the load on the structure, such as the addition of a new floor or heavy furniture, can cause stress and cracking.

Assessing the Severity of Cracks

Not all cracks are created equal, and it’s important to assess their severity to determine the appropriate course of action. Here are some steps to assess the severity of cracks around bay windows:

1. Measure the Width

Use a ruler or measuring tape to measure the width of the crack. Cracks less than 1mm wide are generally considered minor, while those wider than 5mm may indicate more serious issues.

2. Monitor the Crack

Mark the ends of the crack with a pencil and monitor it over time. If the crack continues to grow, it may indicate ongoing movement or structural issues.

3. Check for Other Signs of Damage

Look for other signs of damage, such as sagging floors, sticking doors or windows, or cracks in other parts of the property. These can indicate more widespread structural issues.

4. Consult a Professional

If you’re unsure about the severity of the crack or if it appears to be serious, it’s best to consult a professional surveyor or structural engineer. They can conduct a thorough assessment and provide recommendations for remedial action.

Remedial Actions for Cracks Around Bay Windows

Once you’ve identified the cause and severity of the cracks, it’s time to take remedial action. Here are some common solutions for addressing cracks around bay windows:

1. Repairing Minor Cracks

For minor cracks, such as hairline cracks, simple repairs can often suffice. Here’s a step-by-step guide:

Clean the Crack: Use a brush or vacuum to remove any dust or debris from the crack.
Apply Filler: Use a suitable filler, such as plaster or caulk, to fill the crack. Smooth it out with a putty knife and allow it to dry.
Sand and Paint: Once the filler is dry, sand it smooth and repaint the area to match the surrounding wall.

2. Addressing Foundation Issues

If the cracks are caused by foundation movement, more extensive repairs may be required. Here are some common solutions:

Underpinning: Underpinning involves strengthening the foundation by extending it deeper into more stable soil. This can help to stabilise the structure and prevent further movement.
Grouting: Grouting involves injecting a cement-based mixture into the soil beneath the foundation to fill voids and stabilise the ground.
Piling: Piling involves driving steel or concrete piles into the ground to support the foundation. This can be an effective solution for properties with significant foundation movement.

3. Improving Drainage

If moisture ingress is causing the cracks, improving drainage around the property can help to prevent further damage. Here are some steps to take:

Repair Leaking Gutters and Downpipes: Ensure that gutters and downpipes are in good condition and free from leaks. Clean them regularly to prevent blockages.
Install French Drains: French drains are trenches filled with gravel and a perforated pipe that help to divert water away from the foundation. They can be an effective solution for properties with poor drainage.
Seal the Bay Window: Ensure that the bay window is properly sealed to prevent water from penetrating the structure. Use weatherproof sealant around the edges and check for any gaps or cracks.

4. Strengthening the Structure

If the cracks are caused by structural movement or inadequate support, strengthening the structure may be necessary. Here are some common solutions:

Installing Lintels: Lintels are horizontal supports that can be installed above bay windows to bear the weight of the structure above. This can help to prevent sagging and cracking.
Adding Bracing: Bracing involves adding additional supports to the structure to provide extra stability. This can be particularly useful for properties with significant structural movement.
Reinforcing Walls: In some cases, it may be necessary to reinforce the walls around the bay window with steel or concrete to provide additional support.

Preventing Future Cracks

Once you’ve addressed the existing cracks, it’s important to take steps to prevent future cracks from forming. Here are some tips for maintaining the integrity of your bay windows:

1. Regular Inspections

Conduct regular inspections of your bay windows and the surrounding walls to check for any signs of damage or movement. Early detection can help to prevent more serious issues from developing.

2. Maintain Proper Drainage

Ensure that gutters, downpipes, and drainage systems are in good condition and free from blockages. Proper drainage can help to prevent moisture ingress and foundation movement.

3. Control Vegetation

Keep trees and shrubs away from the foundation to prevent root growth from causing heave or subsidence. Regularly trim vegetation to maintain a safe distance from the property.

4. Monitor Structural Changes

If you’re planning any structural changes, such as adding a new floor or heavy furniture, consult a professional to ensure that the structure can bear the additional load. Proper planning can help to prevent stress and cracking.

5. Use Quality Materials

When making repairs or renovations, use high-quality materials that are suitable for the specific conditions of your property. This can help to ensure the longevity and stability of the structure.

When to Seek Professional Help

While some cracks can be addressed with simple DIY repairs, others may require the expertise of a professional. Here are some situations where it’s best to seek professional help:

1. Large or Widening Cracks

If the cracks are large (wider than 5mm) or continue to widen over time, it’s important to consult a professional. This can indicate significant structural issues that require expert assessment and repair.

2. Multiple Cracks

If you notice multiple cracks around the bay window or in other parts of the property, it may indicate more widespread structural issues. A professional surveyor or structural engineer can conduct a thorough assessment and provide recommendations for remedial action.

3. Signs of Structural Movement

If you notice signs of structural movement, such as sagging floors, sticking doors or windows, or cracks in other parts of the property, it’s important to seek professional help. These issues can indicate significant structural problems that require expert intervention.

4. Foundation Issues

If the cracks are caused by foundation movement, such as subsidence or heave, it’s important to consult a professional. Foundation repairs can be complex and require specialised knowledge and equipment.

5. Moisture Ingress

If you suspect that moisture ingress is causing the cracks, it’s important to address the issue promptly. A professional can assess the extent of the damage and recommend appropriate solutions to prevent further damage.

Conclusion

Cracks around bay windows can be a cause for concern, but with the right knowledge and approach, they can be effectively addressed. By understanding the common causes of these cracks and taking appropriate remedial action, you can maintain the integrity and beauty of your bay windows for years to come. Regular inspections, proper maintenance, and timely repairs are key to preventing future issues and ensuring the longevity of your property.
